Technical Data

Input speed 1750/1420rpm (60Hz/50Hz)

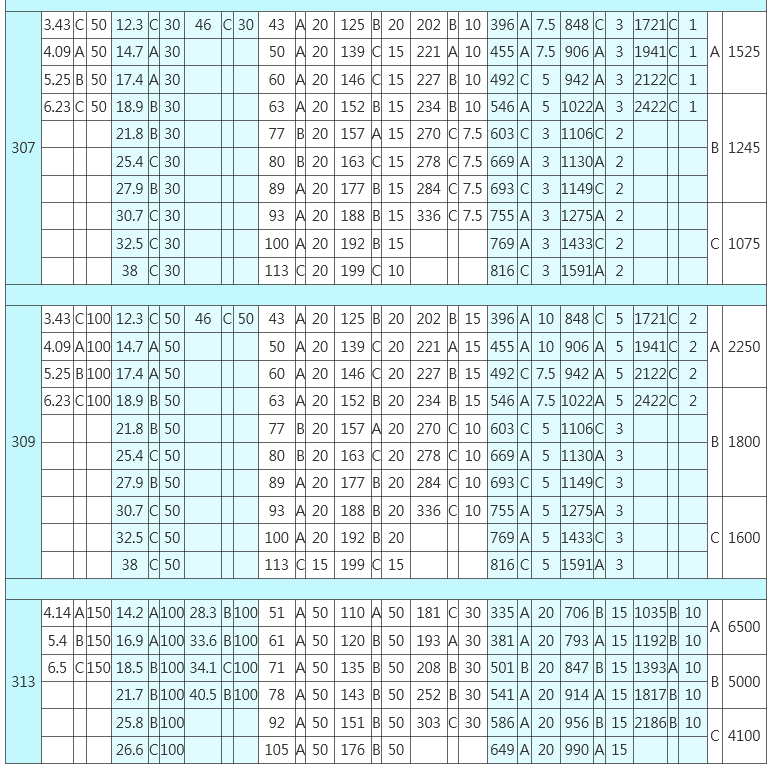

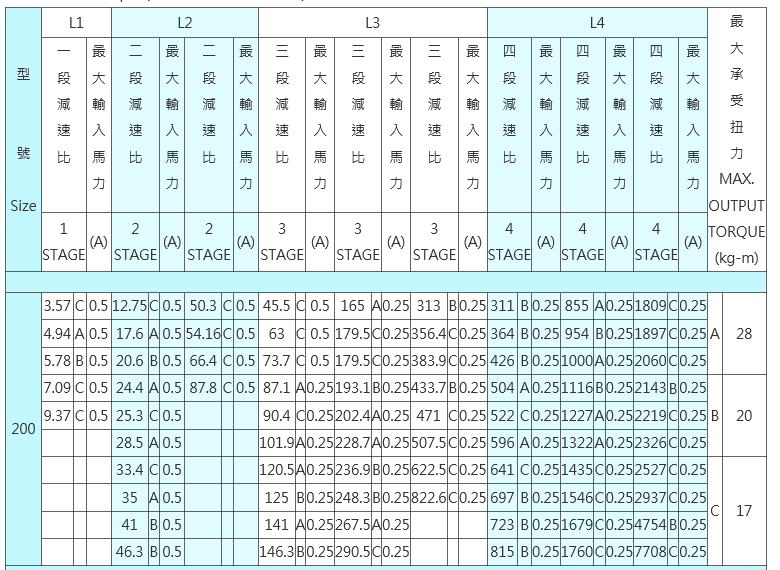

比數對照表-1.png 比數對照表-2.png 比數對照表-3.png 比數對照表-4.png

◆ REMARK：(A)＝MAX INPUT HP.

Please determine ratio and torque to match each of gear stages A，B & C and find different max. torque & input Power.

Example：Type 280#，Ratio1/5.77
Gear Stage Code：(B)
Max Torque：45kg-m
Max Input HP：3HP
