C type liquid mixer

 ● Machine body is aluminum alloy die casted and processed through T4、T6 heat treatment. The structure is extremely solid and stainless

 ● SUS 304 stainless clamp is made by precision de-waxing casting and is crack free.

 ● Fully Hemetic gearbox use high performance oil for lubrication; oil change is not required and maintenance is free.

 ● Double oil seal protection, free from the oil leakage. Appliable fields include food processing, pharmaceutical, chemical, environmental protection etc.

 ● Aluminum alloy made, elegant outfit, compact structure, easy to operate and move.

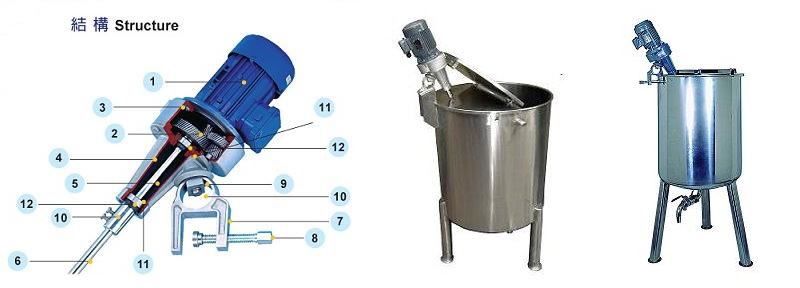

Structure：

1. Motor
 2. Gear
 3. Gear Box (Aluminum Alloy)
4. Base Frame (Aluminum Alloy)
 5. Spindle (SS41)
 6. Shaft (SUS304)
7. C-Clamp(SUS304)  8. Clamp Screw 9. Washer
10. Cap Screw  11. Bearing 12. Oil Seal

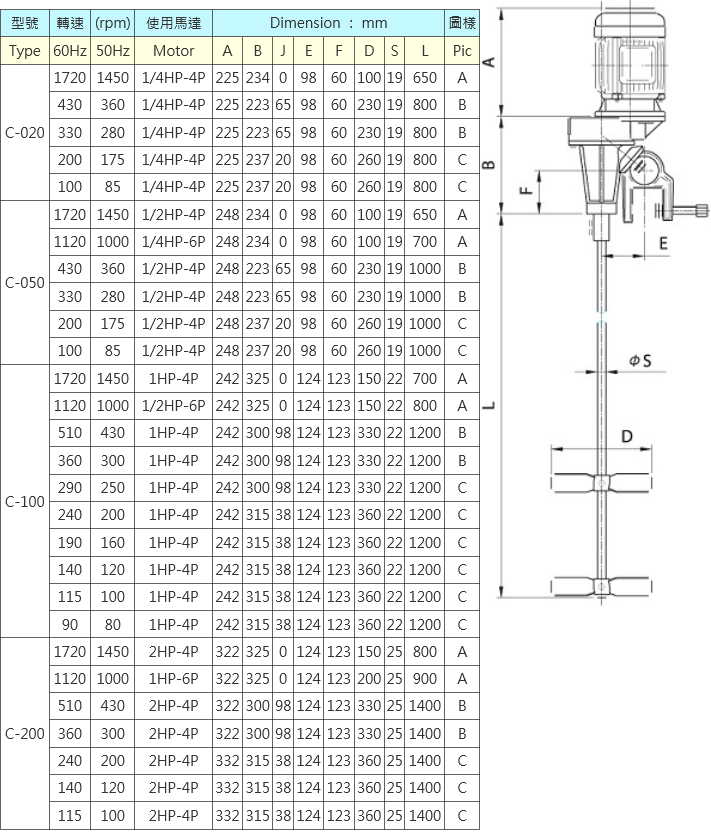

Dimension:
